VCB Control & Protection Panel with SCADA Integration

Comprehensive SCADA System Case Study - Real-time Monitoring & Control Solutions

Back to Our Work
VCB Control Panel

VCB Control & Protection Panel with SCADA Integration

Project Overview

VCB SCADA Interface Devices

  • Multifunction Meter (MFM)
  • Protection Relay (IED)
  • Real-time Monitoring
  • Controls from SCADA

Key Implementation Features

  • Voltage, Current, Power monitoring
  • Over Current & Earth Fault protection
  • Energy tracking & Power Quality analysis
  • Remote VCB control & automation

Detailed System Components

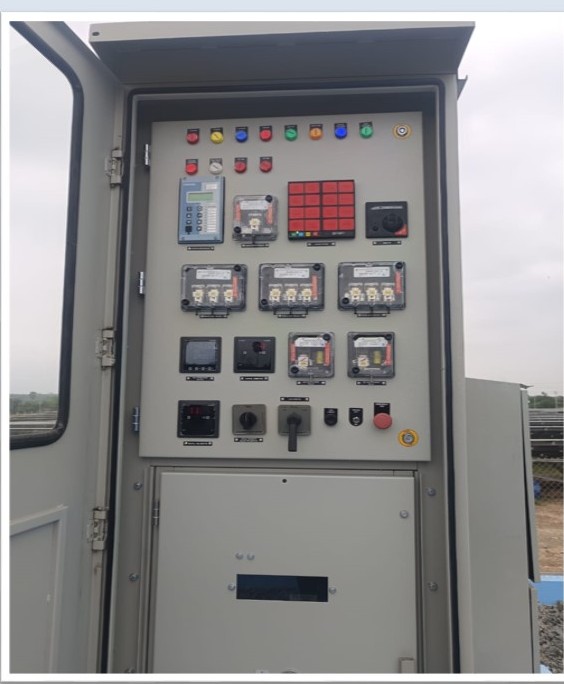

VCB Control Panel

VCB Control & Protection Panel

SCADA Integrated Device with complete monitoring and control

  • Multifunction Meter Integration
  • Protection Relay Interface
  • Real-time Status Monitoring
  • Remote Control Capability

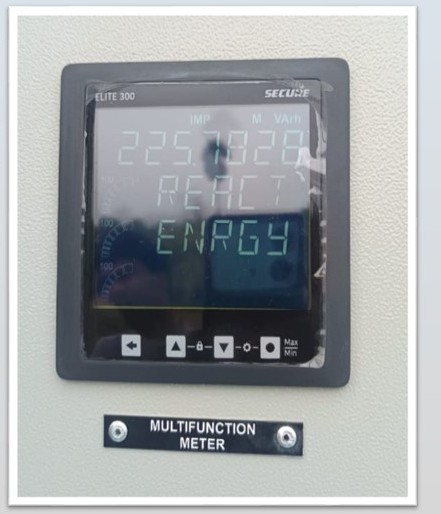

Multifunction Meter

Multifunction Meter (MFM)

Comprehensive electrical parameter monitoring

  • Voltage: R, Y, B Phase & Line Voltage
  • Current: R, Y, B Phase Current
  • Power: Active, Reactive, Apparent
  • Energy: kWh, kVArh, kVAh

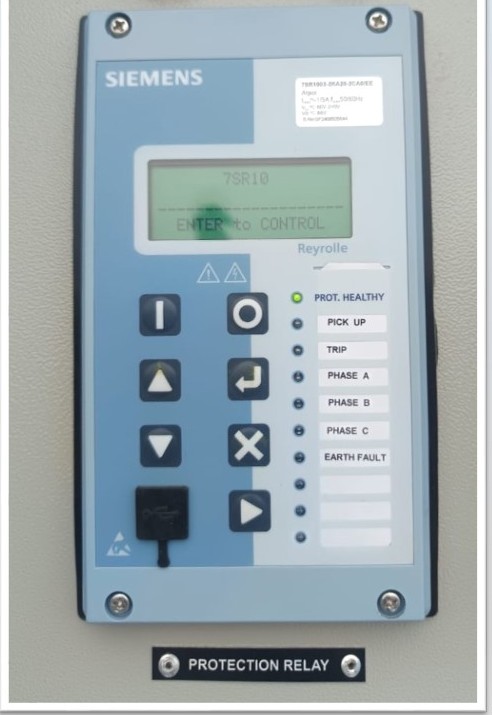

Protection Relay

Protection Relay (IED)

Intelligent Electronic Device for system protection

  • Over Current (50/51) Protection
  • Earth Fault (50N/51N) Protection
  • Under/Over Voltage (27/59)
  • Phase Unbalance Detection
Annunciator

Annunciator Panel

Visual and audible alarm indication system

  • OC Trip – Over Current Alarm
  • EF Trip – Earth Fault Alarm
  • OTI/WTI Temperature Alarms
  • MOG Alarm – Oil Level Monitoring

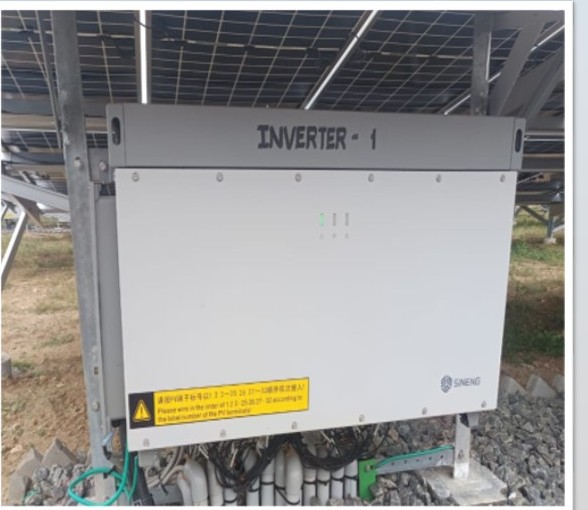

String Inverter

String Inverter

Solar inverter monitoring and control

  • DC Voltage, Current, Power Monitoring
  • AC Parameters & Power Factor
  • Energy: Daily & Total Generation
  • Health & Fault Status Monitoring

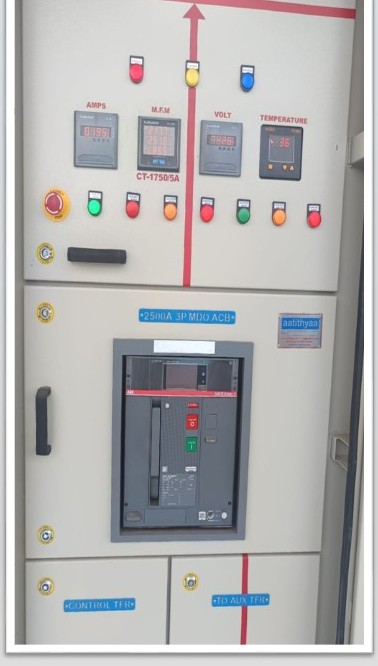

LT Panel

LT Panel as SCADA Device

Low Tension panel monitoring and control

  • Electrical Measurements via MFM
  • Breaker & Feeder Status Monitoring
  • Earth Leakage Relay Status
  • Incomer ACB & MCCB Status

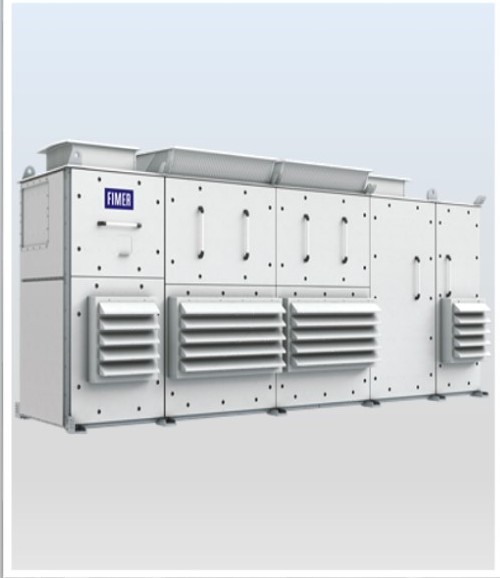

Central Inverter

Central Inverter

Large scale inverter monitoring and control

  • DC & AC Side Comprehensive Monitoring
  • Power: MW, MVAr, MVA Measurements
  • Energy: MWh Tracking & Reporting
  • Grid Code Compliance Control

System Benefits & Outcomes

Enhanced Safety & Reliability

Real-time protection relay monitoring prevents equipment damage and ensures personnel safety with 99.5% system uptime.

Improved Operational Efficiency

Continuous monitoring and optimization reduce energy losses by 15% and improve overall plant performance.

Remote Operation & Control

Full control of VCBs, inverters, and other equipment remotely from SCADA interface with <2 second response time.

Proactive Maintenance

Early fault detection and alarm notifications enable preventive maintenance, reducing downtime by 40%.

Technical Specifications

Parameter Specification Standard
Voltage Accuracy ±0.5% IEC 62053-22
Current Accuracy ±0.5% IEC 62053-22
Response Time < 2 seconds IEC 60870-5-104
System Uptime >99.5% Industrial Grade
Communication Protocol Modbus TCP/RTU, MQTT Industry Standard
